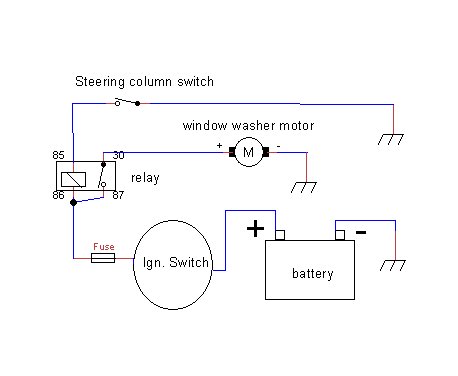

Little wiring diagram:
Find yourself a fuse where you can hook it up without maxing out the amps for the fuse. Of course the fuse should only have current if the ignition switch is switched on.
And you’re done!
Copyright © 2024 | WordPress Theme by MH Themes
Hi. What relay did you use for this mod?
Hi Jacques,
I used a standard relay you would also use for forg lights.
It’s a “normally open” (or: NO) type of relay.
You can see the schematics of the relay in this wiring diagram:
http://images.gerrelt.nl/ruitensproeier_schakelaar/window_washer_wiring.jpg
Greetings,
Gerrelt.
Wow Great Job ..i was wondering if this concept would work.. perfect job and thanks alot for sharing. how is it performs?
Hi Isuru,
It’s been working perfectly since 2008, it performs very well.
Greetings,
Gerrelt.
